Worm Gearboxes for Compact Right-Angle Drives
Worm gearboxes are a useful product family when the machine needs the transmission path to turn through a right angle within a compact installation. HaoRan Transmission presents the WP and NMRV families as different housing and installation approaches, then reviews the final arrangement with the actual equipment evidence. A buyer should choose the route by machine context, not only by a familiar designation.
WP and NMRV start from different installation conversations

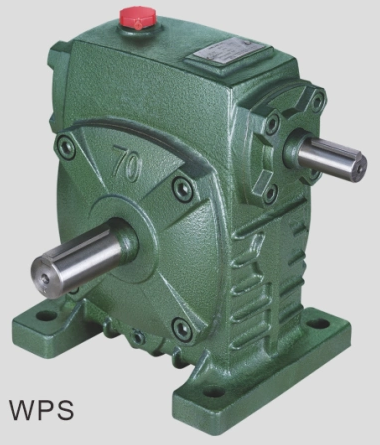

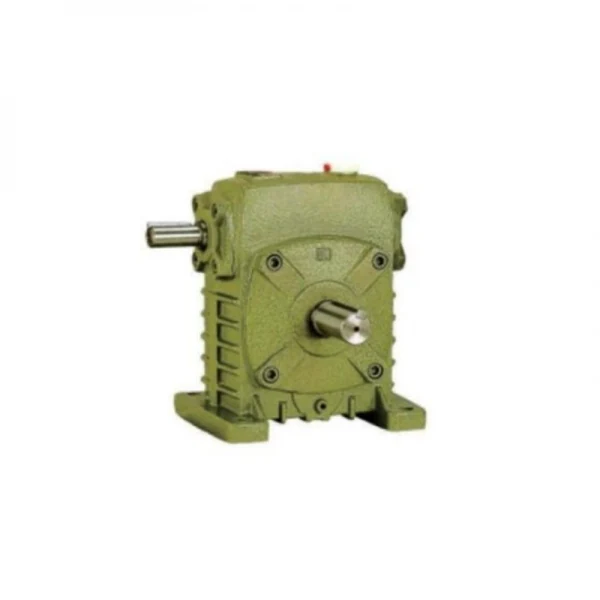

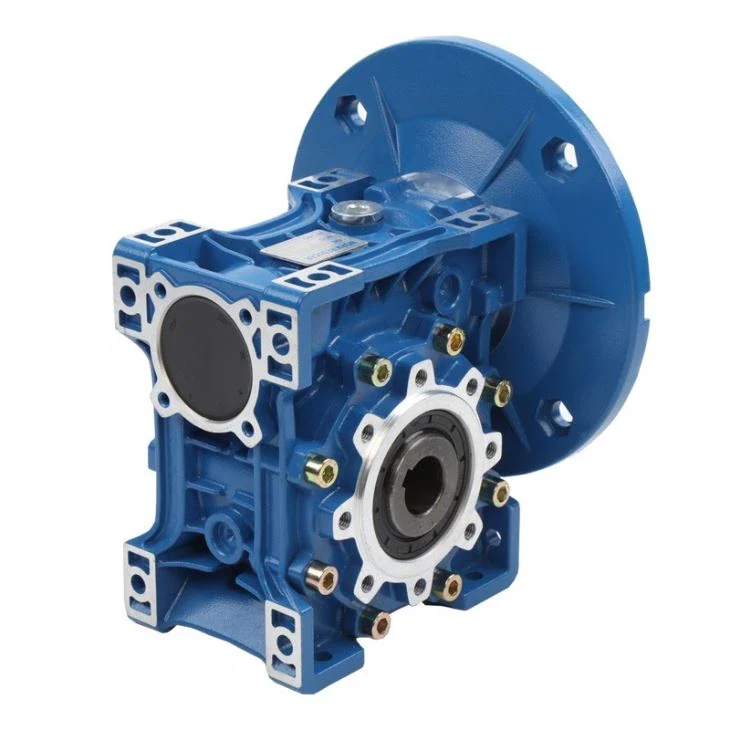

WP worm gearboxes are discussed around their cast-iron housing and the mounting form required by the machine. NMRV worm gearboxes are discussed around an aluminium housing and compact assembly context. In both cases, the mounting surface, driven shaft connection, available clearance and motor interface need to be seen before quotation.
Where the application needs more care
Worm arrangements should not be assumed suitable for continuous heavy-duty service merely because the layout fits. Heat conditions, operating pattern, starting load, surrounding environment and any holding or back-driving requirement belong in the review. A right-angle layout can solve an installation constraint while still requiring a different drive discussion for the real duty.
Evidence for a replacement inquiry
Send a clear nameplate photo, a view of the complete installation, the driven-equipment name and the space around the mounting faces, shaft and motor. If the previous unit failed, include what changed in the machine or operating condition. This makes it possible to separate a mounting-compatible replacement discussion from an unresolved application problem.
Commercial handoff
MOQ, lead time, OEM requirements, packing, warranty expectations, payment terms and delivery routing are confirmed against the actual order. For rail or land transport to Central Asia, the packing and documentation discussion must remain connected to the drive assembly and destination requirements.
> Full technical data sheet available on request
FAQ
Can I select a worm gearbox from the old model name alone?
The old designation can indicate a starting family, but it cannot confirm the installed interface. The mounting arrangement, shaft details, housing position and available clearance must be reviewed with photos or drawings.
Which worm family should I ask about?
Start with the machine layout and housing preference, then send the installation evidence. The review can determine whether the WP or NMRV route is the more relevant technical conversation.
Can a motor be included with the worm gearbox?
Where the order needs a motor, the motor and gearbox can be discussed together so the supplied assembly, mounting interface and OEM requirement are coordinated before quotation.
Plan the inspection and handover route
A worm gearbox enquiry benefits from a practical inspection plan. Ask where the unit will be installed, how the drive can be accessed after commissioning, and whether the customer can photograph the mounting faces before the old assembly is removed. These points affect the value of the technical response: a product family may look relevant on paper while the installed shaft or nearby framework prevents a usable arrangement.
For distributors, the same discipline helps preserve end-user information through the sales handoff. Keep the equipment description, nameplate image, installation photo and requested delivery destination together with the inquiry. If the buyer later needs an additional drawing or confirmation, the record explains what has already been seen instead of restarting the investigation from a shortened product description.
